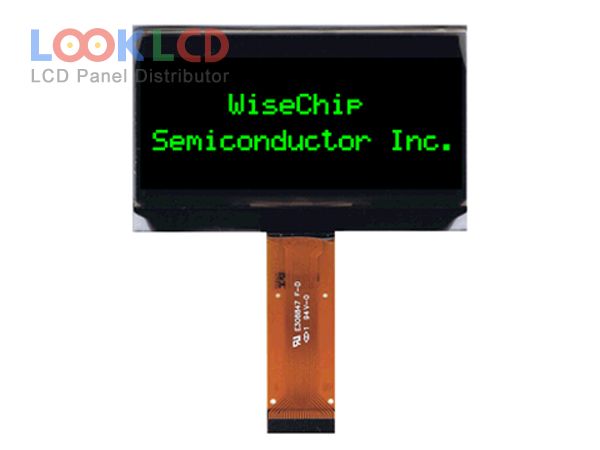

| Cikkszám | UG-2864ASGPG01 |
| Márka | WiseChip |
| Méret | 2.4 |
| Alkalmazás | IA |
| Felbontás | 128×64 |
| Fogalmazás | OLED |
| Fényerősség | 80 |
| CR | |
| Színek | Mono(Green) |
| Háttérvilágítás | self |
| Felület | CPU/SPI/I²C |
| panel márka | WiseChip |
| panel modell | UG-2864ASGPG01 |
| panel típusa | PM-OLED , OLED |
| panel mérete | 2.4 inch |
| felbontás | 128×64 |
| aktív terület | 55.01×27.49 mm |
| vázlat | 60.5×37 mm |
| felület | |
| Fényerősség | 80 cd/m² (Typ.) |
| kontraszt arány | |
| kijelző színei | Mono(Green) |
| látószög | |
| driver ic | Built-in SSD1309 |
| jel interfész | 8-bit 6800/8080 parallel, 4-wire SPI, I²C |
| rohs: | |
| Alkalmazás | IA |
